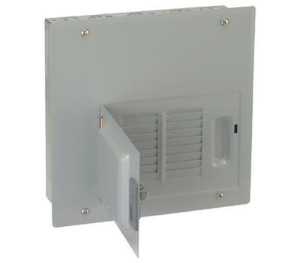

LOADCENTER MAIN LUG INDR 125A
Box is significantly smaller and lighter while maintaining optimum wire-bending space. Side mounted main breaker allowstop or bottom feed. Sturdy copper bus and galvanized box increase durability and reliability; tinplated for corrosion resistance. Minimum 100 per cent neutral terminations. All neutral holes rated for 14-4 wire. Extruded neutrals are easier to wire, reducing installation time and cost. Combination slotted/Robertson screws speed wiring. Accepts GE Q-Line branch circuit breakers, including GE's exclusive 1/2" THQPs. Interior removes and reinstalls easily. Main breaker not included. (8) 1" circuits or (16) 1/2" circuits. 12-5/8" x 12-3/8" 3-3/8". UL Listed.

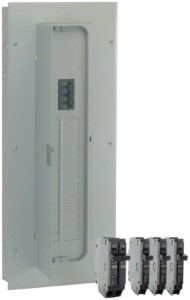

LOAD CENTER MCB 100A 30/60
Descriptors
Category
Load Centers
GO Schedule
RT
Grouping
Single Phase - USA
Specifications
# Branch Circuit <250A
30
1" Space
30
1/2" Space
0
Amperage
100 A
Circuit Breaker Style
Plug-On Neutral
Door
Yes
Enclosure
Indoor
Enclosure Type
Indoor, Combination
Factory Installed Ground Kit
No
Feed
Either
Input/Output Voltage
120/240V ac
Interrupt Rating
22kAIC
Interrupting Capacity Rating
22kAIC
Load Center Type
P-Series (PON)
Meter Socket Options: 200 Amp Main Breaker Installed
No
Meter Socket Options: High Amp Mode
None
NEMA Rating
NEMA 1
No of Circuits
60
Phase
1 Phase
Service & Voltage
1 Phase, 3 Wire, 120/240V ac
Wires
3 Wire
